CTC UNION - Industrial Managed 2.5G/10G PoE Switch - IQS-402XSM-4PH
4x 2.5G RJ45 + 2x 1G/2.5G/10G SFP+ with 4x PoE 120W, Compact Size, Managed Switch
Spedizione garantita e tracciata
.png)
Pagamento tramite bonifico
.png)
Consegne rapide e dirette
.png)
Supporto clienti avanzato

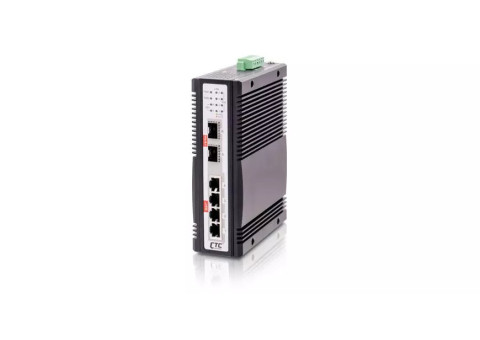

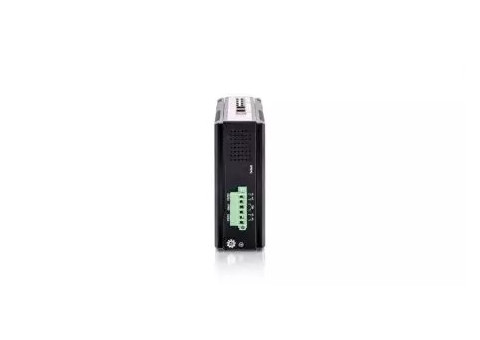

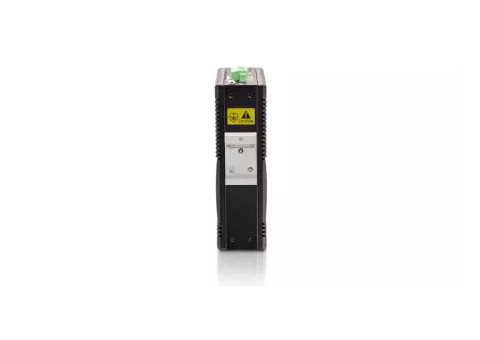

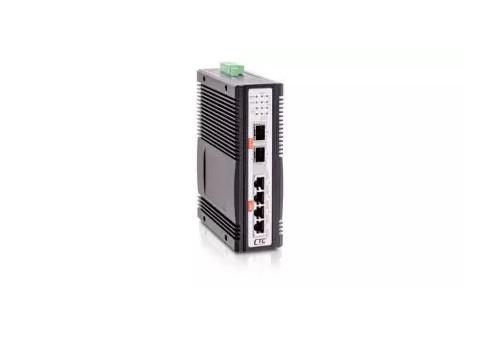

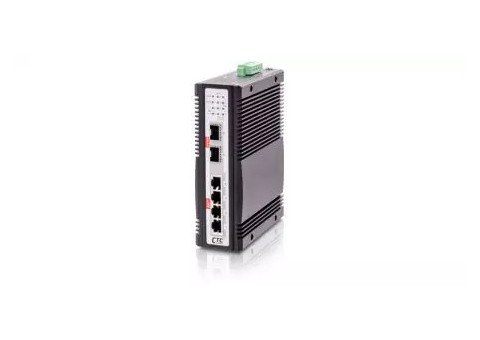

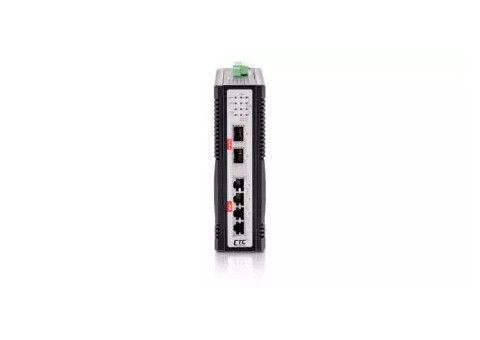

The industrial 2.5G PoE Ethernet switch IQS-402XSM-4PH features 4 2.5G UTP ports, each supporting 30W PoE+. Equipped with 2 10G SFP+ slots to meet high-bandwidth transmission requirements, fanless design, high MTBF, supports wide operating temperature, and redundant 48VDC power input, it is suitable for heavy-duty applications in harsh environments such as industrial factory automation and data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.
- 4x 10/100/1G/2.5G Base-T RJ-45+ 2x 1G/2.5G/10G Base-X SFP+ with 4x PoE, total 120W power budget
- Provides 3 ring instances that each can support μ-Ring, μ-Chain or Sub -Ring type for flexible uses.
- Supports up to 3 rings in one device (Please see CTC μ-Ring white paper for more details and more topology application)
- DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
- QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
- IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
- Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
- IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
- Flexibility security: Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Software upgrade via TFTP and HTTP, redundant firmware to avoid upgrade failure
- RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
- Supports IPv6 Telnet server /ICMP v6
- CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
NET000285
Data sheet
- L2 Ethernet Switches PoE (L2 Ethernet Switches PoE) - Networking
- L2 Ethernet Switches PoE
4x 2.5G RJ45 + 2x 1G/2.5G/10G SFP+ with 4x PoE 120W, Compact Size, Managed Switch
