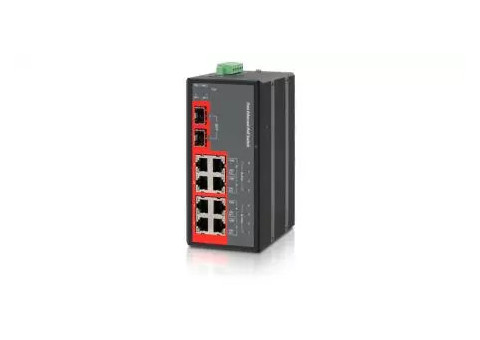

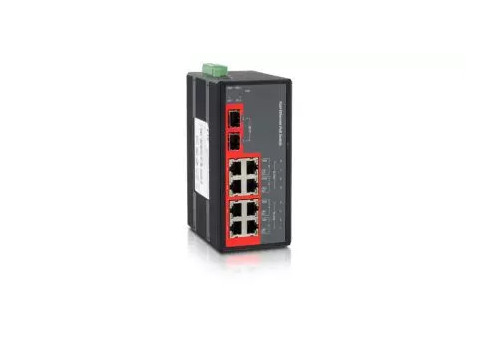

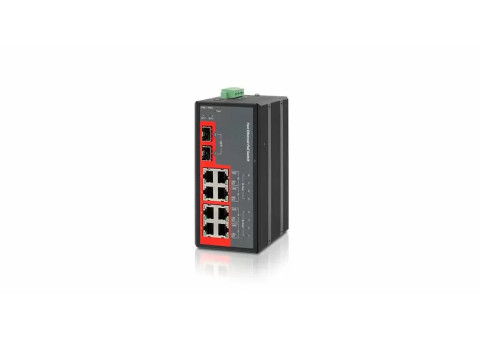

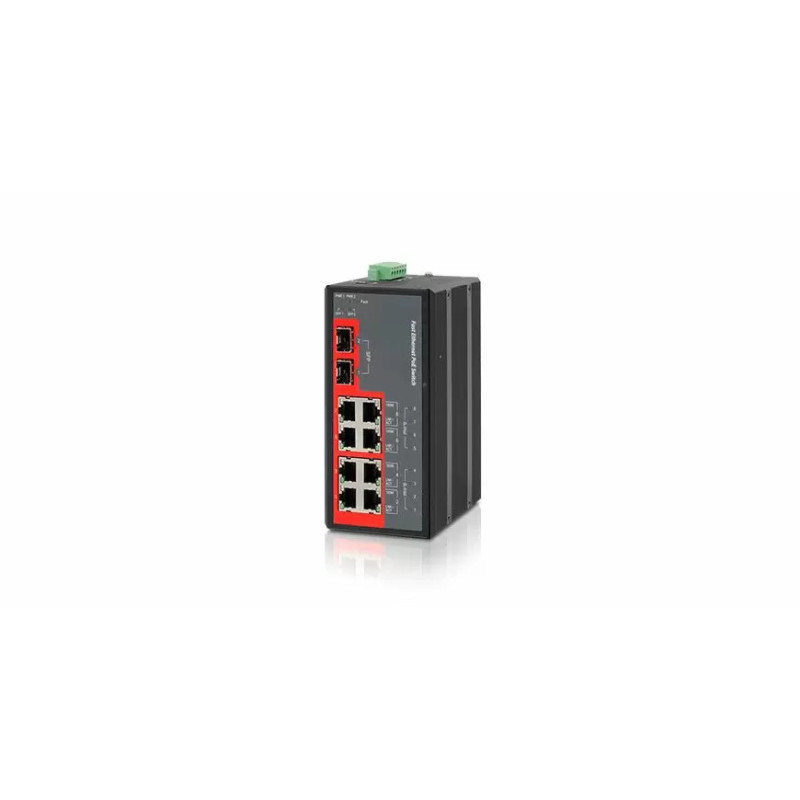

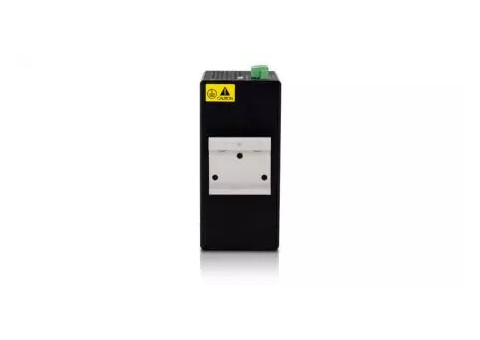

CTC UNION - Industrial Managed 1G/2.5G PoE Switch - IGS-402SM-4PH24
4x GbE RJ45 + 1x 100/1000Base-X SFP + 1x 100M/1G/2.5G SFP with 4x PoE 120W, 24/48VDC Managed Switch
Spedizione garantita e tracciata
.png)
Pagamento tramite bonifico
.png)
Consegne rapide e dirette
.png)
Supporto clienti avanzato
The industrial PoE Ethernet switch IGS-402SM-4PH24 has 4 Gigabit UTP ports and each port supports 30W PoE+. Equipped with two 100/1000 SFP slots for fiber optic connections to meet the requirements for extended transmission distance, fanless design, high MTBF, supports wide operating temperature, redundant 24/48VDC power input, suitable for heavy-duty applications in harsh environments, such as industrial factory automations, data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.
- Regulated PoE output voltage (52VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter
- Provides 4-port IEEE 802.3af / 802.3a t PoE output (30W per Port)
- Cable diagnostics, identifies opens/shorts distance
- Provides 5 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device
- μ-Ring for redundant cabling, recovery time<10ms in 250 devices
- Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
- Supports EMS Management
SWD000052
Data sheet
- Switch Industriali (Man/UnMan) - Networking
- Man
- Switch Industriali (Switches Ind) - Networking
- Switches Ind
- Switch Industriali (Eth/Poe) - Networking
- PoE
4x GbE RJ45 + 1x 100/1000Base-X SFP + 1x 100M/1G/2.5G SFP with 4x PoE 120W, 24/48VDC Managed Switch
