Sysnet - Industrial Layer 3 GbE Switch IGR-2408SM
search
  • Sysnet - Industrial Layer 3 GbE Switch IGR-2408SM

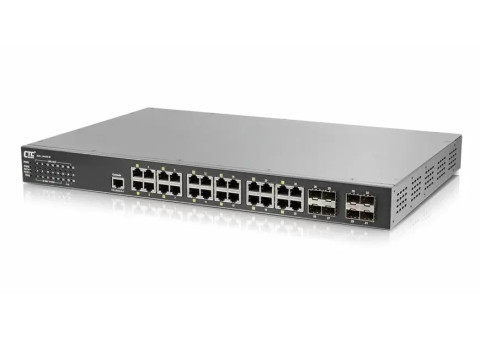

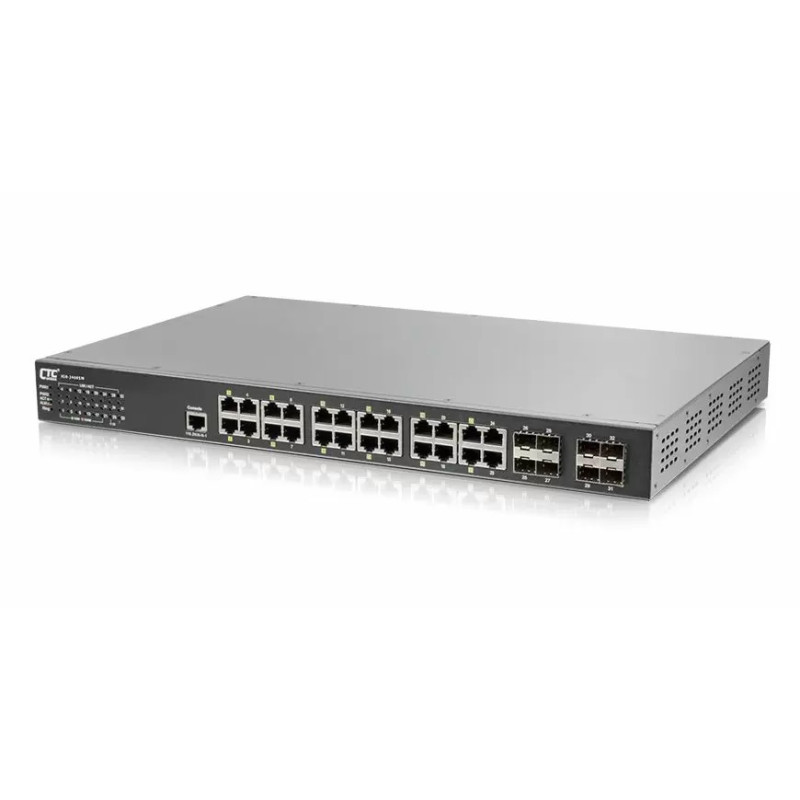

CTC UNION - Industrial Layer 3 GbE Switch - IGR-2408SM

L3 24x GbE RJ45 + 8x 100/1000Base-X SFP



Spedizione garantita e tracciata



Pagamento tramite bonifico



Consegne rapide e dirette



Supporto clienti avanzato

Select configuration

As an industrial Layer 3 Ethernet switch for process and transportation automation applications, IGR-2408SM supports static and dynamic routing protocols, features 24 Gigabit UTP ports and 8 100/1000 SFP slots, fanless design and redundancy isolated power supplies, certified to many industry-grade standards, are ideal for deployment in harsh environments to provide mission-critical network services.

  • Redundant isolated 24/48/-48VDC (18~60VDC), or/and isolated 110/220VAC power inputs
  • Supports negative voltage power input
  • 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
  • STP, RSTP, MSTP, G.8031 EPS, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network redundancy
  • Provides 14 instances each can support μ-Ring, u-Chain or Sub -Ring for flexible networking applications
  • μ-Ring redundancy, recovery time <20ms in 250 devices
  • Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • Supports EMS Management

NET000337
