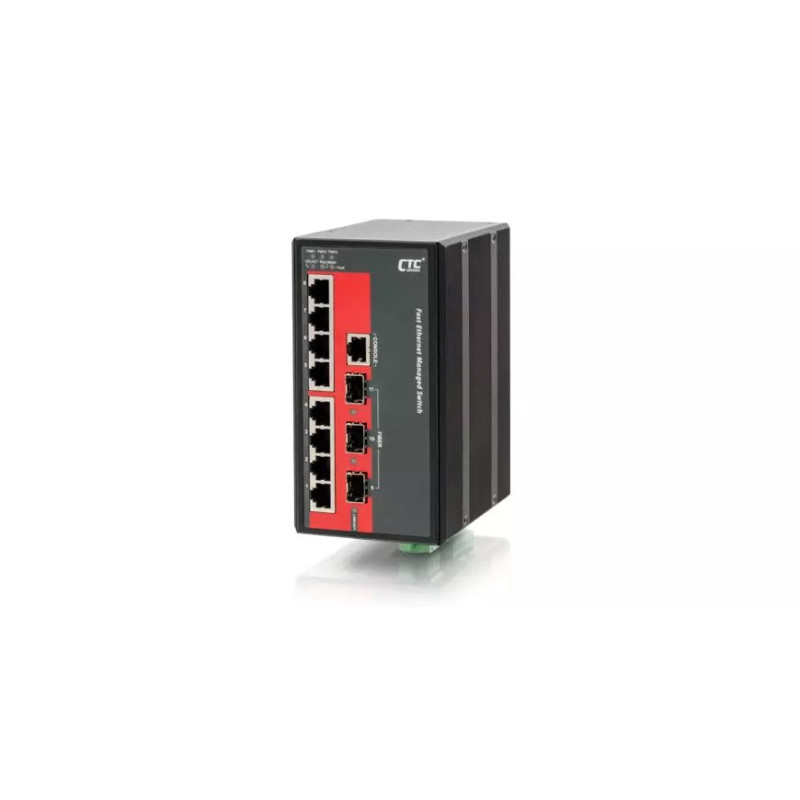

CTC UNION - IEC 61850-3 Managed FE Switch - IPS-803GSM

Name: CTC UNION - IEC 61850-3 Managed FE Switch - IPS-803GSM
Brand: CTC Union
SKU: 68

Spedizione garantita e tracciata

Pagamento tramite bonifico

Consegne rapide e dirette

Supporto clienti avanzato

Seleziona la configurazione

Redundant isolated low voltage 24/48VDC, or/and isolated High voltage AC/DC (110/220 VAC/VDC ) power inputs
Wide Operating Temperature -40~85° C
DIN Rail mounting or wall mounting
IP30 rugged metal housing, Fanless
Cable diagnostic, measuring cable normal or broken point distance
Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
Provides 5 instances that each can support μ-Ring, μ-Chain or Sub -Ring type for flexible uses. (Please see CTC Union μ-Ring white paper for more details and more topology application)
μ-Ring for Redundant Ethernet Ring, recovery time<10ms in 250 units
Supports EMS Management

Riferimento SWD000020

Scheda tecnica

Switch per Sottostazioni Elettriche IEC61850-3 (Switches Eth) - Networking: Switches Eth
