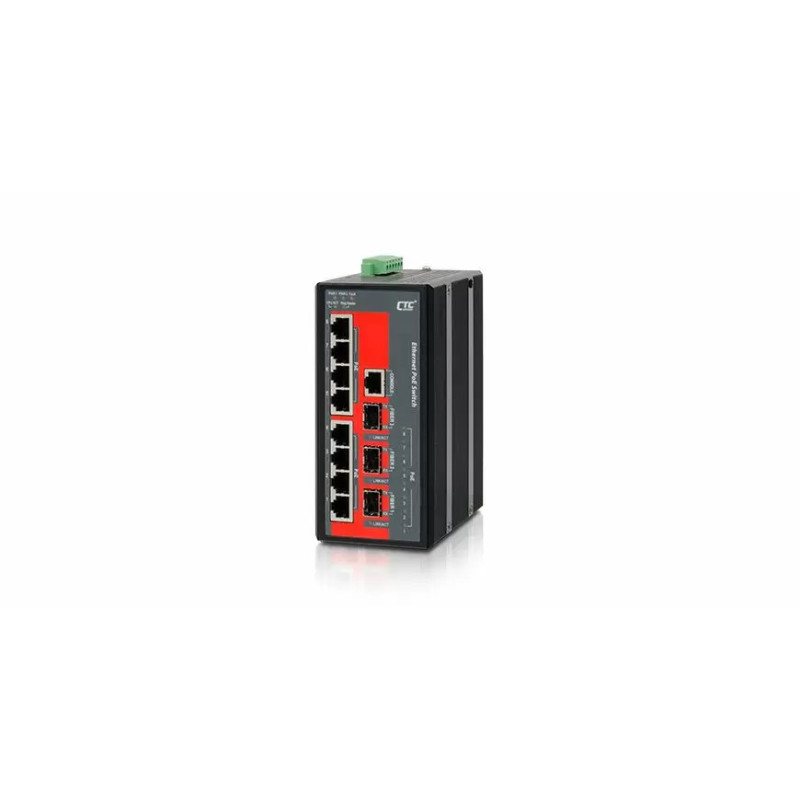

CTC UNION - Industrial Managed FE PoE Switch - IFS-803GSM-8PH24

Name: CTC UNION - Industrial Managed FE PoE Switch - IFS-803GSM-8PH24
Brand: CTC Union
SKU: 48

Spedizione garantita e tracciata

Pagamento tramite bonifico

Consegne rapide e dirette

Supporto clienti avanzato

Seleziona la configurazione

Tags: CTC UNION Networking Switch Industriali Industrial PoE Switches

8x FE RJ45 + 3x 100/1000Base-X SFP with 8x PoE 180W, 24/48VDC Managed Switch

Regulated PoE output voltage (52VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter
Provides 8 port IEEE 802.3af / 802.3a t PoE output (30W per Port)
Cable diagnostics, identifies opens/shorts distance
Provides 5 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 5 ringsin one device
μ-Ring for redundant cabling, recovery time<10ms in 250 devices
Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer TransparentClock, End to End Transparent Clock, Master, Slave mode by each port
Supports EMS Management

Riferimento SWD000011

Scheda tecnica
