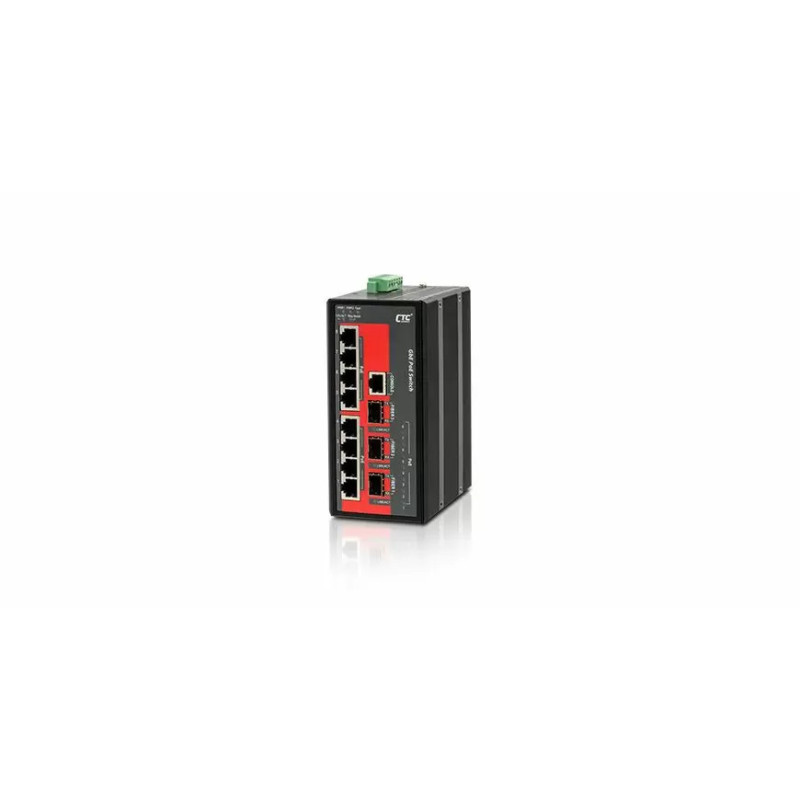

CTC UNION - Industrial 1G/2.5G Managed PoE Switch - IGS-803SM-8PH24
8x GbE RJ45 + 1x 100/1000Base-X SFP + 2x 100M/1G/2.5G SFP with 8x PoE 180W, 24/48VDC Managed Switch
Spedizione garantita e tracciata
.png)
Pagamento tramite bonifico
.png)
Consegne rapide e dirette
.png)
Supporto clienti avanzato
The industrial PoE Ethernet switch, Layer 2 managed, IGS-803SM-8PH24 has 8 Gigabit UTP ports, each port complies with IEEE802.3af/at up to 30W PoE+ standard. Equipped with 3 SFP slots, 2 of which can reach 2.5G bandwidth, for fiber optic connections to meet the requirements for extended transmission distance and high-speed transmission, fanless design, high MTBF, supports wide operating temperature, 24/48VDC redundant power input, suitable for heavy-duty applications in harsh environments, such as industrial factory automations, data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.
- Regulated PoE output voltage (52VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter
- Provides 8-port IEEE 802.3af / 802.3a t PoE output (30W per Port)
- Cable diagnostics, identifies opens/shorts distance
- Provides 5 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device
- μ-Ring for redundant cabling, recovery time<10ms in 250 devices
- Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
- Supports EMS Management
SWD000067
Data sheet
