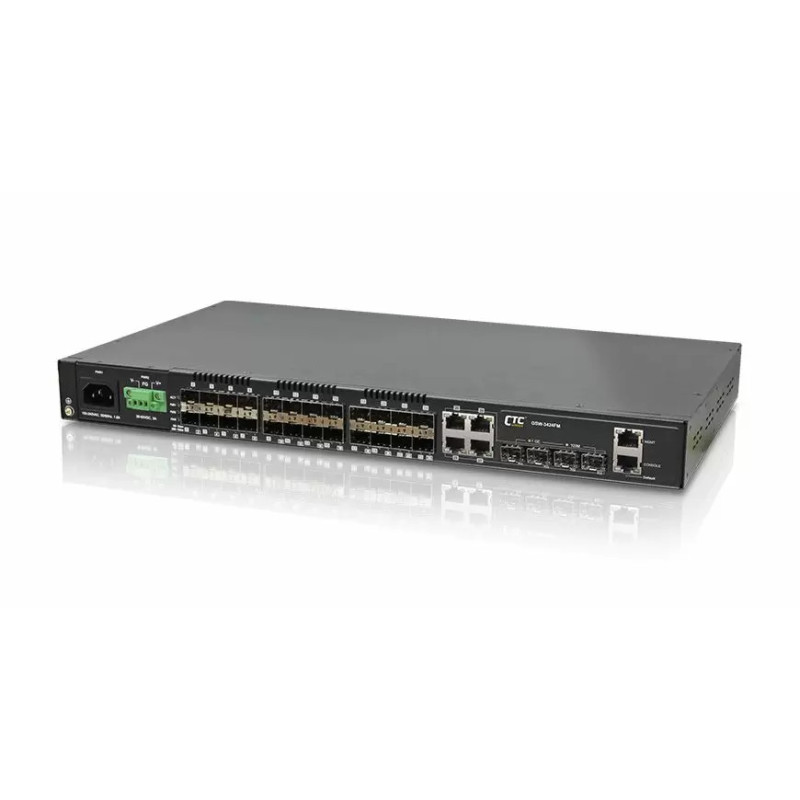

CTC UNION - L2+ Managed Ethernet Switch - GSW-3424FM



Spedizione garantita e tracciata



Pagamento tramite bonifico



Consegne rapide e dirette



Supporto clienti avanzato

Seleziona la configurazione

Specifications

Interface Access fiber port: 24x 100Base-FX/1000Base-X SFP slot
Access copper port: 4x 10/100/1000Base-T RJ45
Uplink port: 4x 1000Base-X/10GBase-X SFP+ slot
Management port: 1x 10/100/1000Base-T RJ45
Console port: 1x RS-232 in RJ45
Switching Fabric Capacity 136Gbps
Packet Forwarding Rate 148800pps @10Mbps
148800pps @100Mbps
1488000pps @1000Mbps
14880000pps @10Gbps
Packet Forwarding Capacity 102Mpps
Transmission Method Store and Forward Switching
Packet Buffer 32M bits
MAC Table Size 32K
Jumbo Frame Size 10K Bytes
VLAN Feature IEEE 802.1Q tagged VLAN (4K VLAN groups), IEEE 802.1ad QinQ VLAN, Voice VLAN
MAC based VLAN, Protocol based VLAN, IP subnet based VLAN, Private VLAN for port isolation
VLAN translation, GVRP (GARP VLAN registration protocol)
Link Aggregation Static trunk (SA, DA, IP, TCP/UDP port), IEEE 802.3ad LACP, 16 LACP trunk groups Max; 8 port Max. per LACP trunk group
L2 Switching Protection IEEE 802.1D STP/IEEE 802.1w RSTP/IEEE 802.1s MSTP, Loop Protection
QoS Feature Hard wired IEEE 802.1p 8 priority queues per port, Traffic scheduling based on strict/WRR priority
CoS based traffic classification on switch port, VLAN ID, DSCP, TCP/UDP port, DSCP remarking
IEEE 802.1p priority tag remarking, DSCP remarking
Per port/queue based ingress/egress rate limit in steps of 100kbps, IEEE 802.3x flow control
Multicast/Broadcast/Unicast storm control with flooding control
Security Static port security (MAC based), Per port limited MAC learning
Port based / MAC base / single / multiple IEEE 802.1x access control
256 ACL rules based on L2~L4 information, RADIUS/TACACS+ AAA, HTTPs & SSH v2
IP/MAC binding, IP source guard & ARP inspection
IP Multicasting IGMP snooping v1/v2/v3, IGMP proxy, MLD snooping v1/v2, IGMP fast leave
IGMP query, IGMP filtering/throttling, MVR (Multicast VLAN Registration)
Management WebGUI/Telnet CLI interface, SNMP v1/v2c/v3, RMON I (1,2,3,9 groups), RFC1213 MIB II, Private MIB
DHCP client/snooping/relay option 82, TFTP/HTTP based firmware and configuration upgrade, Port mirroring
RSPAN, Event syslog server, DNS client/proxy, NTPv4 client, UPnP
IPv4/IPv6 management, SFF-8472 DDMI, IEEE 802.1ab LLDP
Text based CLI configuration download and upload
Power Input 100~240VAC ; 36~60VDC
Power Consumption 38.6 Watts Max.
Operating Temperature 0~50°C
Storage Temperature -25~70°C
Humidity 5%~95% (non-condensing)
Dimension 440 × 250 × 43.5 mm (WxDxH)
Certification CE, FCC class A
