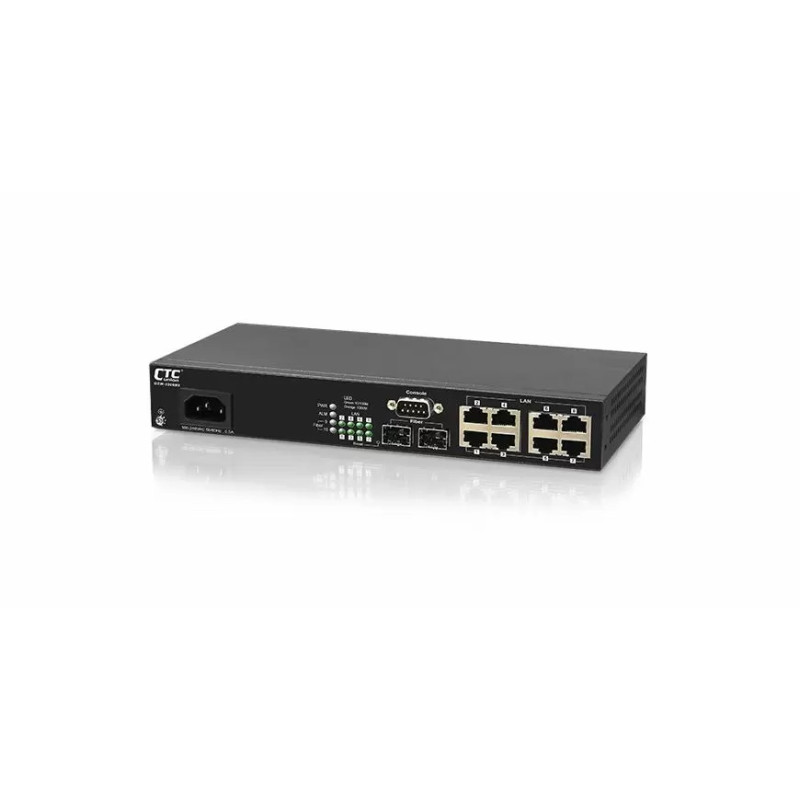

CTC UNION - L2+ Gigabit Ethernet Switch - GSW-3208M2



Spedizione garantita e tracciata



Pagamento tramite bonifico



Consegne rapide e dirette



Supporto clienti avanzato

Seleziona la configurazione

Specifications

Interface Fiber port: 2x 100/1000Base-X SFP
Copper port: 8x 10/100/1000Mbps RJ45
Console port: RS-232 in D-Sub 9
Packet Forwarding Rate 14880pps @10Mbps
148800pps @100Mbps
1488000pps @1000Mbps
Transmission Method Store and Forward Switching
Packet Buffer 4M bits
MAC Table Size 8K
Jumbo Frame Size 9600 Bytes
VLAN Feature IEEE 802.1Q tagged VLAN (4K VLAN groups), IEEE 802.1ad QinQ VLAN
Voice VLAN, MAC based VLAN, Protocol based VLAN, IP subnet based VLAN
Private VLAN for port isolation, VLAN translation, GVRP (GARP VLAN registration protocol)
Link Aggregation Static trunk (SA, DA, IP, TCP/UDP port)
IEEE 802.3ad LACP, 5 LACP trunk groups Max; 8 port Max. per LACP trunk group
L2 Switching Protection IEEE 802.1D STP/IEEE 802.1w RSTP/IEEE 802.1s MSTP, Loop Protection
QoS Feature Hard wired IEEE 802.1p 8 priority queues per port
Traffic scheduling based on strict/WRR priority
CoS based traffic classification on switch port, VLAN ID, DSCP, TCP/UDP port
IEEE 802.1p priority tag remarking, DSCP remarking
Per port/queue based ingress/egress rate limit in steps of 100kbps
IEEE 802.3x flow control, Multicast/Broadcast/Unicast storm control with flooding control
Security Static port security (MAC based), Per port limited MAC learning
Port based/MAC base/single/multiple IEEE 802.1x access control
256 ACL rules based on L2~L4 information, RADIUS/TACACS+ Authentication, HTTPs & SSH v2
IP/MAC binding, IP source guard & ARP inspection
IP Multicasting IGMP snooping v1/v2/v3, IGMP proxy, MLD snooping v1/v2, IGMP fast leave, IGMP
