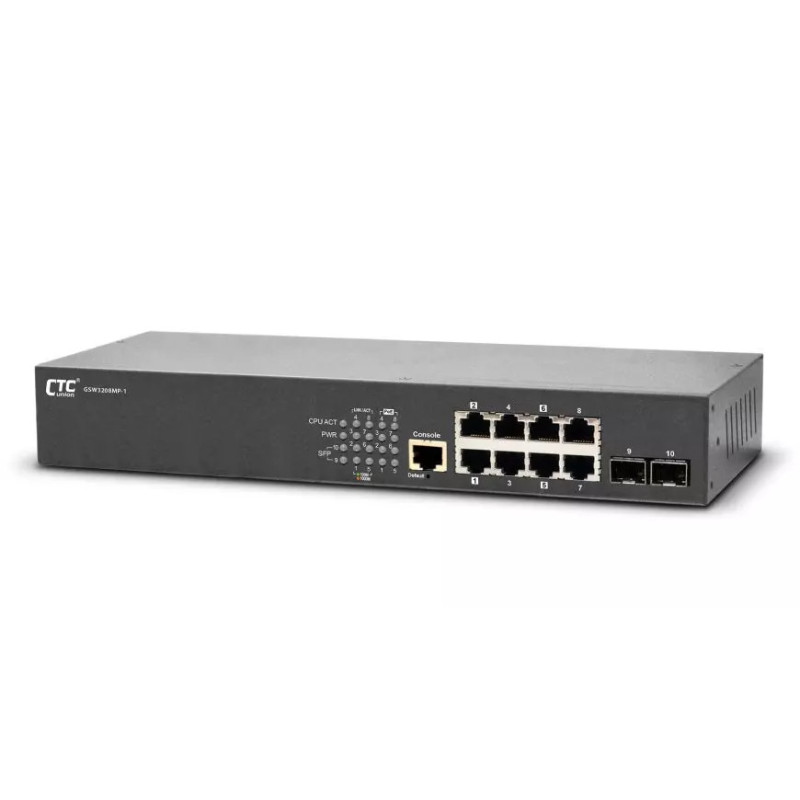

CTC UNION - L2+ Gigabit Ethernet Switch - GSW-3208MP-1



Spedizione garantita e tracciata



Pagamento tramite bonifico



Consegne rapide e dirette



Supporto clienti avanzato

Seleziona la configurazione

Features

  • 8 × RJ45/PoE+ ports with 180W power budget totally
  • Cable diagnostics to test UTP cable or determine broken point distance
  • Text based CLI configuration download and upload
  • Advanced PoE management
    • PoE PD failure auto check and reset if PD failed
    • PoE port on/off scheduling
    • PoE configuration for power planning

Specifications

Interface Fiber port: 2x 100/1000Base-X SFP
Copper port: 8x 10/100/1000Base-T RJ45
Console port: 1x RS-232 in RJ45
PoE Power Budget 180W
Switching Fabric Capacity 20Gbps
Packet Forwarding Rate 148800pps @10Mbps
148800pps @100Mbps
1488000pps @1000Mbps
Transmission Method Store and Forward Switching
Packet Buffer 4M bits
MAC Table Size 8K
Jumbo Frame Size 9600 Bytes
VLAN Feature IEEE 802.1Q tagged VLAN (4K VLAN groups), IEEE 802.1ad QinQ VLAN, Voice VLAN
MAC based VLAN, Protocol based VLAN, IP subnet based VLAN, Private VLAN for port isolation
VLAN translation, GVRP (GARP VLAN registration protocol)
Link Aggregation Static trunk (SA, DA, IP, TCP/UDP port), IEEE 802.3ad LACP
5 LACP trunk groups Max; 8 port Max. per LACP trunk group
L2 Switching Protection IEEE 802.1D STP/IEEE 802.1w RSTP/IEEE 802.1s MSTP, Loop Protection
QoS Feature Hard wired IEEE 802.1p 8 priority queues per port
Traffic scheduling based on strict/WRR priority
CoS based traffic classification on switch port, VLAN ID, DSCP, TCP/UDP port, DSCP remarking
IEEE 802.1p priority tag remarking, DSCP remarking
Per port/queue based ingress/egress rate limit in steps of 100kbps
IEEE 802.3x flow control, Multicast/Broadcast/Unicast storm control with flooding control
Security Static port security (MAC based), Per port limited MAC learning
Port based/MAC base/single/multiple IEEE 802.1x access control
256 ACL rules based on L2~L4 information, RADIUS/TACACS+ Authentication, HTTPS & SSH v2
IP/MAC binding, IP source guard & ARP inspection
IP Multicasting IGMP snooping v1/v2/v3, IGMP proxy, MLD snooping v1/v2, IGMP fast leave
IGMP filtering/throttling, MVR (Multicast VLAN Registration)
Management WebGUI/Telnet CLI interface, SNMP v1/v2c/v3, RMON I (1,2,3,9 groups), RFC1213 MIB II, Private MIB
DHCP client/snooping/relay option 82, TFTP/HTTP based firmware and configuration upgrade
Port mirroring, Event syslog server, DNS client/proxy, NTP client, UPnP
IPv4/IPv6 management, SFF-8472 DDMI, IEEE 802.1ab LLDP
Advanced PoE Management PoE PD failure auto check and reset if PD failed
PoE port on/off failure, PoE port enable/disable
Power limit by PD classification, Totally PoE power budget limitation (180W maximum), Power feeding priority
Power Input AC power input (100~240V)
Power Consumption 228 Watts @ PoE full load
Operating Temperature 0~50°C
Storage Temperature -25~70°C
Humidity 5%~95% (non-condensing)
Dimension 290 × 140 × 43.8 mm (WxDxH)
Certification CE, FCC class A
