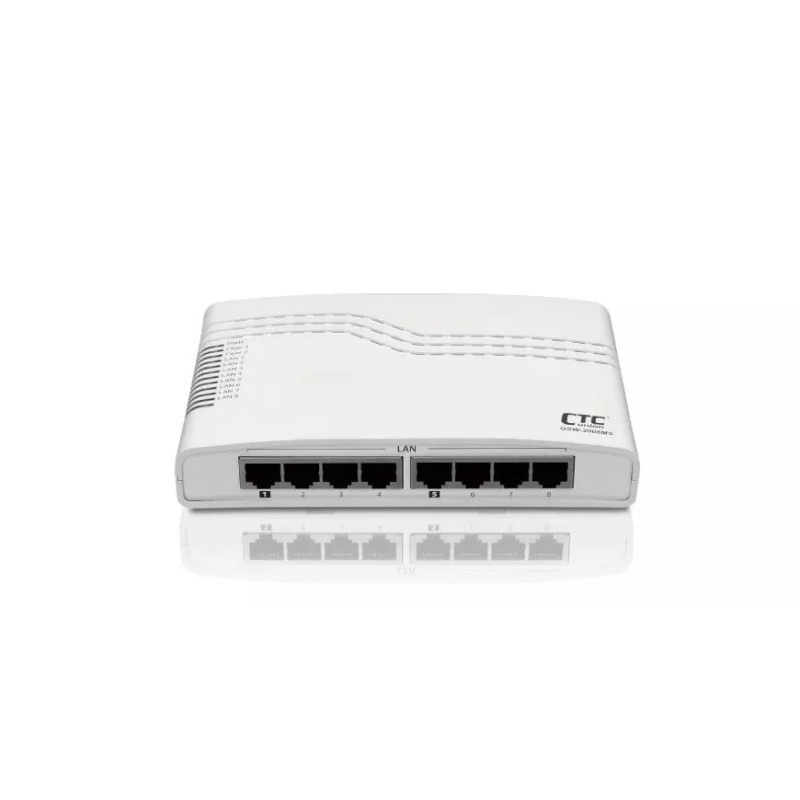

CTC UNION - CPE Switch - GSW-2008MS



Spedizione garantita e tracciata



Pagamento tramite bonifico



Consegne rapide e dirette



Supporto clienti avanzato

Seleziona la configurazione

Interface Fiber port: 2x 100/1000Base-X SFP
Copper port: 8x 10/100/1000Mbps RJ45
Packet Forwarding Rate 148800pps @10Mbps
148800pps @100Mbps
1488000pps @1000Mbps
Transmission Method Store and Forward Switching
Packet Buffer 4M bits
MAC Table Size 8K
Jumbo Frame Size 9600 Bytes
VLAN Feature IEEE 802.1Q tagged VLAN (4K VLAN groups), IEEE 802.1ad QinQ VLAN, Voice VLAN
MAC based VLAN, Protocol based VLAN, IP subnet based VLAN, Private VLAN for port isolation
Link Aggregation Static trunk (SA, DA, IP, TCP/UDP port)
IEEE 802.3ad LACP, 5 LACP trunk groups Max, 8 port Max. per LACP trunk group
L2 Switching Protection IEEE 802.1D STP/IEEE 802.1w RSTP/IEEE 802.1s MSTP, Loop Protection
QoS Feature Hard wired IEEE 802.1p 8 priority queues per port, Traffic scheduling based on strict/WRR priority
CoS based traffic classification on switch port, VLAN ID, DSCP, TCP/UDP port, DSCP remarking
IEEE 802.1p priority tag remarking, Per port/queue based ingress/egress rate limit in steps of 100kbps
IEEE 802.3x flow control, Multicast/Broadcast/Unicast storm control with flooding control
Security Static port security (MAC based), Per port limited MAC learning
Port based/MAC base/single/multiple IEEE 802.1x access control, 256 ACL rules based on L2~L4 information
RADIUS/TACACS+ Authentication, HTTPS & SSH v2, IP/MAC binding, IP source guard & ARP inspection
IP Multicasting IGMP snooping v1/v2/v3, IGMP proxy, MLD snooping v1, IGMP fast leave, IGMP query
IGMP filtering/throttling, MVR (Multicast VLAN Registration)
Management WebGUI/Telnet CLI interface, SNMP v1/v2c/v3, RMON I (1,2,3,9 groups) & RFC1213 MIB II
Dying gasp in SNMP trap message, DHCP client/snooping/relay option 82
TFTP/HTTP based firmware and configuration upgrade, Port mirroring, Event syslog server
DHCP auto provisioning with option 60/66/67/254, NTP client, UPnP, IPv4/IPv6 management
SFF-8472 DDMI, IEEE 802.1ab LLDP
Power Input AC/DC power adaptor, 12VDC/1A
Power Consumption 7.08 Watts Max.
Operating Temperature 0~50°C
Storage Temperature -25~70°C
Humidity 5%~90% (non-condensing)
Dimension 170 × 120 × 35 mm (W×D×H)
Certification CE, FCC class A

NET000273
