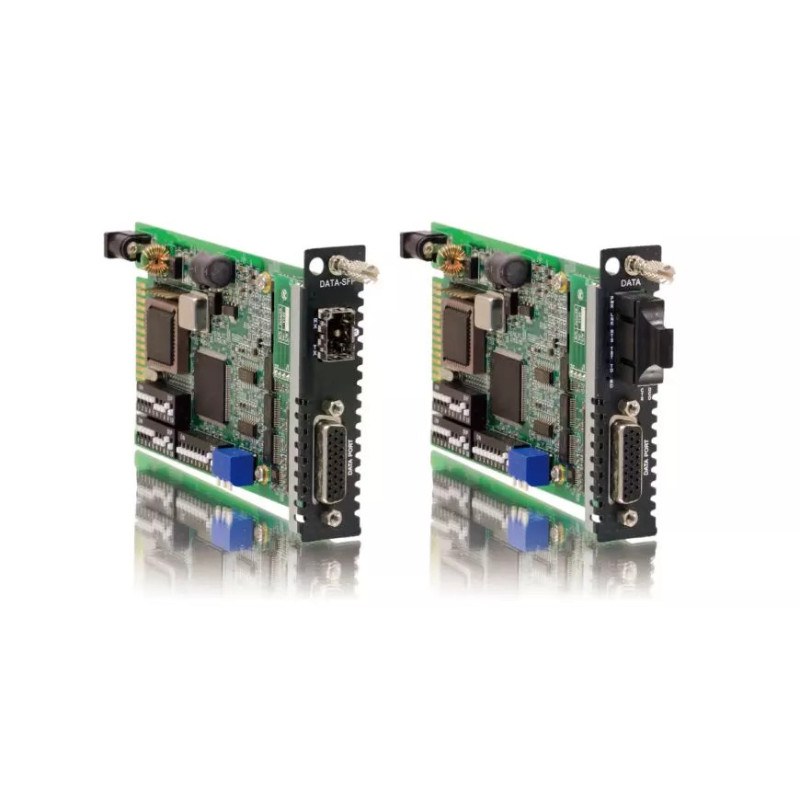

CTC UNION - RS232/530/V35 over Fiber Card - FRM220-DATA & FRM220-DATA-SFP

RS232/530/V35 over Fiber Card



Spedizione garantita e tracciata



Pagamento tramite bonifico



Consegne rapide e dirette



Supporto clienti avanzato

Select configuration

The FRM220-DATA is a fiber modem for high-speed (up to 8.192Mbps) synchronous or low speed synchronous and asynchronous data transmissions (V.35, RS-232, RS-530, X.21 or RS-449) over fiber optical media. When the FRM220-DATA card is placed in the FRM220 rack with SNMP management, in-band management allows viewing the card and remote converter's status, type, version, fiber link status, data link status and alarms.

Both card and remote can be configured to enable or disable the port, reset the port, set the data rate, modify the clock mode, and initiate local or far end loop back tests. The FRM220-Data fiber modem may also be paired with the FRM220-E1 / T1 for Nx64K transmissions. When placed in a single slot chassis and used standalone without management, the card may be configured by DIP switches.

  • Synchronous or Asynchronous data over fiber
  • In-band network management via terminal, web or SNMP in FRM220 chassis
  • Selectable I / F, V.35, X.21, RS-530, RS-449, RS-232
  • Selectable DCE or DTE mode
  • Data rate n x 64kbps, up to 9Mbps
  • Multiple clock setting
  • Electrical and optical loop back tests
  • Compatible with FRM220-E1 on same fiber link for N x 64k
  • Standalone RS232 console management via CH01M

    1

    Data sheet
